XILS DeeS

Your voice, his voice, her voice. Every voice is a treasure.

With the help of the XILS DeeS you can get rid of all the Voice recordings faults and problems in a flash, while preserving their unique, precious character.

Getting clean, professional vocals, dubbing recordings, restoring voices in all their beauty has never been so easy.

XILS DeeS in short:

• Easy to use : Find the sweet spot in a flash and remove all unwanted signals. Just move the Frequency Knob and apply Reduction. No more sibilance.
• Easy to understand : Clear Dual Signal path. Solo buttons for each channel ( Voice, Sibilants )
• Visualise what you do : Instant Correlation between ears, eye and brain in a glance with the fast, precise 4 signals real time Frequency Graph ( Bottom of unit )
• Easy to tweak : Go further and adapt the character of a voice to your project. Or make special effects and creative use of the DeeS

Only with the XILS DeeS:

• Entirely Transparent: No filter sweep effect like with traditional similar tools.
• Fast:  The detection can be applied as fast as it should be, resulting in lively, natural voices (No more lifeless voices).
• Input independent detection: Retains the whole dynamic range of the incoming audio.
• Simple: Sibilant and Voice Channels are clearly identified on each UI part: Knobs, Graphs share common color code.
• Exclusive: Plosive detection for better recognition
• Then go even further: Endless possibilities to change, adapt, or polish the character of voices with two independent EQing audio paths (Analog like 0-delay-feedback filters).

Wether you want to restore the quality of these emotional vocals that  you’ll never be able to record again, clean your own voice recordings for a blog, an institutional movie, or Video material, ensure your customers that your dubbing material will be totally flawless, turn an amateur announcer into a Veteran Speaker, adapt a voice to a project sonic or musical context, XILS DeeS will provide you the most professional results.

Quickly. And in an intuitive way.

Features

Once it enters into the DeeS, a signal is split into two independent channels (Detection Step): The Voice (Minus Sibilants) and the Sibilants Only.

Each channel has its own EQ.

The Detection module helps you to find the right Voice frequency range to process to remove the sibilants, and specify the quality (fastness) of the processing.

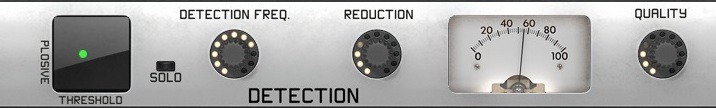

De-essing: The detection Module

Select the cutoff frequency between Voices and Sibilants, select the amount of reduction you want to apply, select the quality of the de=essing (how the result will be smoothed and slow or rough and fast), find the right spot for the plosives, allowing a better sibilant recognition et voilà!

The vumeter simply displays the detected sibilants.

Analog EQs to the rescue

The internal XILS DeeS algorithm allows to equalise with different settings the two split signals ( The voice, and the Sibilant ) : Each « Channel » has its own EQ.

This results in a transparent and versatile audio process!

Even better : The involved EQs, Low Pass 6 and 12db, Bell and High Shelf, has been developed to mimic analog behaviour in the hight frequency range (zero-delay filters) : The standard digital artefacts and latency  brought by the internal delay has been totally removed.

Furthermore, this simple organization is obvious to understand and to work with.

Simple structure, but not simple internal algorithm

A lot of attention has been put in the side-chain treatment (with or without latency), including a Plosive detection for a better sibilant recognition.

Fast and robust Sibilant detection, accurate level modulation, total independence from input level, were required in order to make this tool as transparent as possible.

You’ll notice that being independent from the input level is a big advantage, because the DeeS won’t work in a different way ( Over-compression, under-compression ) if the entering signal gain varies, which is the behaviour of most similar units, and will therefore retain all the dynamics and lively character of the original.

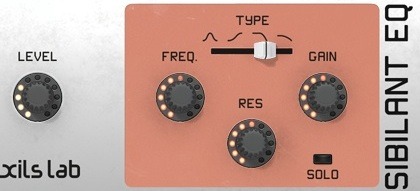

Sibilant Path :

Easy and obvious, you can select your filter type (Low Pass 6dB, Low Pass 12 dB, Bell, High-Shelf) and tweak the cutoff frequency, resonance (or emphasis) and Gain when applied. The Level knob allows you to reduce or increase the Sibilant audio path.

You can listen to your equalized sibilants by clicking on the SOLO button

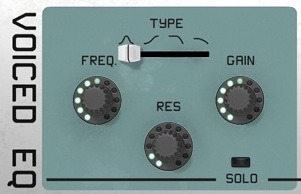

Voice Path:

Almost the same than the Sibilant path, excepted that it has no specific level

You can listen to your equalized voices by clicking on the SOLO button.

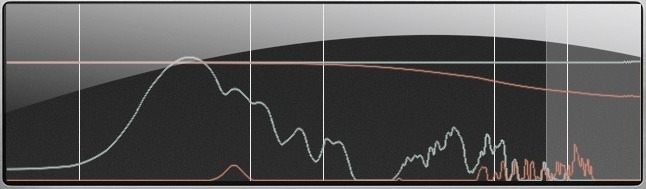

Display:

The display allows you to "see" what happens in your audio track and simultaneously visualize the Voice and the Sibilant spectrum, as well as the curve and spectrum of the applied EQs

System Requirements

XILS DeeS is Available in the Following Formats:

• Mac OSX 10.5 and later : VST, Audio Unit,  RTAS (Protools 7.0 and later), AAX (32&64 bits, native)
• Windows XP, Vista and 7&8 ; VST,  RTAS (Protools 7.0 and later), AAX (32&64 bits, native)
• XILS DeeS is a 32 and 64 bit plug-in protected with a serial number

Minimum System Requirements:

• 1 Gigabyte of RAM and a 1 GHz processor.
• XILS DeeS  is a plug-in and is not available in a standalone application.
